Main features:

  • High dimensional precision
  • Smooth starting
  • Smooth switching
  • Smooth braking
  • Maintenance-free motors
  • Wheel flange guide
  • Ultrasonically tested main girder connection plates
  • Sturdy design
  • Complete standard equipment
  • Plug-in connector for electrical connections with brake recifier fitted in
End Carriages & Wheel Blocks Featured Image

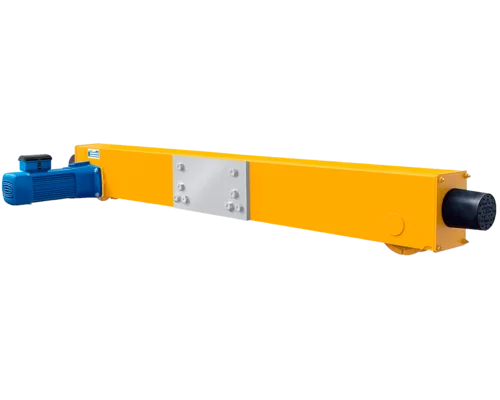

End Carriages & Wheel Blocks

Steel structure in accordance with DIN 15018. As all the machining is performed in one jig, the structure has a high degree of mechanical precision.

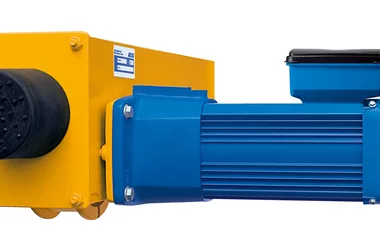

Connected to main girders by high-strength bolts. Wheels with roller bearings and permanent lubrication. Motor with smooth starting and stopping characteristics. With integrated DC power supply for sturdy, durable electro-mechanical disc brake. Motor entirely maintenance-free. Steel structure with single-layer painting RAL 1007 daffodil yellow, motors painted traffic blue, RAL 5017.

Scope of supply:

Steel structure with built-in wheels, buffers and buffer plates, connection plates with high-strength connection to main girder, geared brake motor with plug-in connector and built-in braking rectifier.


ABUS Flyer ABUCompact GMC


ABUS Components C

Download PDF (550.18 KB)
