Overhead Travelling Cranes
ELK

Single girder overhead travelling crane

ABUS single girder travelling cranes guarantee optimal material flow even in situations where space is at a premium as in production plants or warehouses where there is little room for crane systems. ABUS single girder travelling cranes are available with rolled section girders or with welded box girders. Thanks to different main girder connection versions, each type of crane can be optimised to minimise headroom and achieve the highest possible hook position.



Product Details

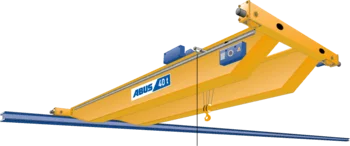

ZLK

Double girder overhead travelling crane

ABUS double girder overhead travelling cranes achieve the maximum load capacity of up to 120 tonnes. They are available in various configurations and feature the versatility required for additional requirements. It is very easy to implement higher crane travel speeds, service platforms, trolleys with walkways, and auxiliary hoists for example.



Product Details

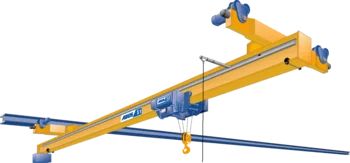

Underslung overhead travelling crane

ABUS underslung overhead travelling cranes offer solutions in applications where gantry tracks are fitted to ceilings rather than free-standing or building columns. Optimal side approach dimensions make it possible to use the maximum available building width.



Product Details

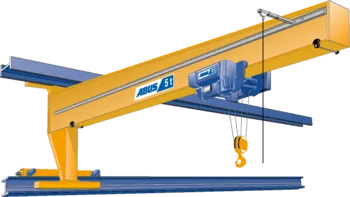

EWL

Single girder wall travelling crane

ABUS wall travelling cranes travel on their own crane tracks at building mid-level beneath high-level overhead travelling cranes. They are an ideal solution for covering several workstations with a single installation. ABUS wall travelling cranes type EWL reach spans of up to 12m and have load capacities of up to 5t.



Product Details
EHPK

Single girder semi-goliath crane

The ABUS single girder semi-goliath crane EHPK is particularly suited to the movement of goods of up to 10t at mid-level. The EHPK also integrates smoothly into existing material flow systems: the upper end carriage travels on normal crane tracks and the lower end carriage does not require guide rails thus being free from any edges or hazards. Loading on the building structure is minor. A combination of obstacle recognition and rotating beacon make sure the semi-goliath crane is operated safely. From the economic point of view this crane is characterised by comparatively low investment costs and can be installed easily and quickly.



Product Details

Downloads

Abus overhead cranes



ABUS Overhead Cranes

Download PDF (7.79 MB)

ABUS overhead travelling cranes for your area of application

Within its standard range, Eilbeck Cranes provides overhead cranes typically equipped with ABUS hoists. These overhead travelling cranes can be perfectly adapted to your areas of application and operational requirements. You will find different designs such as single girder and double girder overhead travelling cranes, underslung travelling cranes, single girder wall travelling cranes and single girder semi-goliath cranes.


Make ideal use of available space – this works best with an overhead travelling crane. This overhead travelling crane enables an excellent use of space even in low buildings and achieves optimum lifting heights thanks to its favourable dimensions. This indoor crane offers safe working load capacities of up to 16t and spans of up to 39m.


A double girder overhead travelling crane is ideal for lifting and moving particularly heavy loads of up to 120t. It impresses with a large span of up to 40m and can be equipped with additional features depending on the requirements, such as maintenance walkways on the crane bridges, a crab unit with a maintenance platform or with an additional hoist. Therefore, a crab unit with a maintenance platform and a maintenance walkway on the crane bridge provide significant advantages when carrying out maintenance work.


Even buildings without preparation for a runway beam (e.g. non-load-bearing building supports) can be equipped with an overhead travelling crane.  An underslung travelling crane is exactly the right thing for such building conditions. The runway beams are mounted directly under the ceiling without the need for any additional supports, making ideal use of available space.  The underslung travelling cranes offer load capacities of up to 8t and spans of up to 17.5m.


A single girder wall travelling crane is usually installed below a larger overhead travelling crane, i.e. at the mid-level of the building. In perfect interaction with the travelling overhead travelling crane above, the single girder wall travelling crane travels along the building wall and thus serves several workplaces at the same time. The single girder wall travelling crane can achieve a maximum load capacity of up to 5t and a maximum jib length of 12m (SWL dependent).


ABUS single girder semi-goliath crane also travels at the mid-level of the building and can serve multiple workplaces in a production line. If the building floor is even and has a sufficient load-bearing capacity, the lower end carriage can be moved directly on it using a flat wheel – consequently removing the need for a low-level guide rail, which would cause an obstacle. ABUS single girder semi-goliath cranes have maximum load capacity of 10t and a span of up to 15m (SWL dependent).



Overhead travelling cranes from ABUS

ABUS is one of the major manufacturers of standard indoor cranes in Europe. Eilbeck Cranes standard cranes equipped with ABUS hoists provide customised solutions for economical material flow, assist with the planning, maintenance and repair of crane installations and are at your disposal with professional services at any time.

Thanks to the various installation options, overhead cranes can be ideally integrated into the planning for a new building or for installation into an existing building and guarantee maximum flexibility, functionality and ideal operating characteristics.



No crane travel without runway beam

Eilbeck Cranes also offers a customized solution for the required runway beam, depending on your project requirements or existing building support structure. Eilbeck team of engineers supports you competently in all planning phases.  In this way, we provide you a complete solution comprising crane and runway beam.



Additional equipment and options

Innovative ABUS radio control ‘ABURemote’ with inductive charging cradle is a useful piece of additional equipment available for every overhead travelling crane. With ABURemote radio control you are independent – You are free to choose the location from which to operate the overhead travelling crane and therefore will always have the best view of the complete working area.  The ABURemote radio control has numerous functions and options, for example, a tandem control system for two overhead travelling cranes with two hoists on each crane. In combination with modern control system ABUControl, the handling of long products is not only safe but also simple in operation thanks to the synchronisation and sway controls.

Additional equipment for overhead travelling cranes such as highly-efficient LED lights that optimally illuminate the working area of the cranes and a calibratable (also retrofittable) weighing bottom block are two examples of further ABUS options in crane construction that enhance operation. Everything for the safety and operating comfort of your employees. Put together your own overhead cranes and completely individual crane systems using many additional options!



Crane installation

Let a competent Eilbeck Cranes contact advise you on your project about overhead cranes or other crane systems. We accompany you from the planning stage through installation (by request, including installation equipment such as mobile cranes, fork lifts or aerial work platform) to testing and commissioning before initial operation. We would be pleased to support you in the efficient planning & design of your facility through multiple working levels. For this purpose, standard range crane technology offers you further solutions such as a slewing jib crane (pillar jib cranes, wall-mounted jib cranes), our lightweight mobile gantry (LPK) or ABUS suspended HB monorail or light crane systems. You will be advised on which crane option is suitable for your project and offered the manufacture of new systems or consider the modernisation of existing crane systems. Please contact us!
