Electric Drives for Suspended Rails

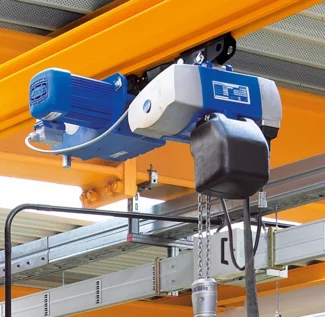

Electric drive for the trolley travel (crosswise)
- Two-stage electric drive with a slow and a fast precision speed (5 and 20 m/min or 10 and 40 m/min)
- Recommended for loads of 1000 kg and above - we will be happy to advise you
- Deliverable for all suspended rail systems

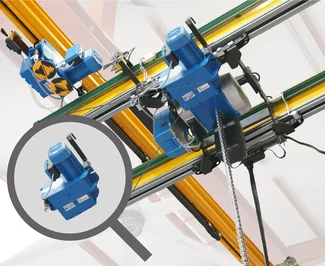

Electric drive for the trolley travel (crosswise) for double girder cranes
- The complete length of the crane can be used by integrating the drive into the trolley frame
- Two-stage electric drive with a slow and a fast precision speed (5 and 20 m/min or 10 and 40 m/min)
- Recommended for loads of 1000 kg and above - we will be happy to advise you
- Deliverable for suspended crane types ZHB, ZHB-X and ZHB-3

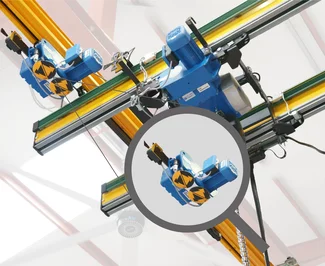

Electric drive for the crane travel (lengthwise)
- Two-stage electric drive with a slow and a fast precision speed (5 and 20 m/min or 10 and 40 m/min)
- Recommended for loads from 1000 kg and/or spans from 6000 mm - we will be happy to advise you
- Deliverable for suspended crane types EHB-X, ZHB and ZHB-X
- For cranes of type ZHB-3 with three tracks, the electric crane travel drive is included in the standard scope of delivery.
